M_ML
e: 1529
Mechanical cam which contains a punch made from an ISO 8020 standard power supply up to 5000 daN with steel spring return. M normal stroke, ML long stroke. The extraction from metal sheet is made by gummy-PU. Can be fitted horizontally or inclined (after comparison with Newstark’s technical department). Means of application: generally suitable for cutting and drilling work.
Name
Last edit

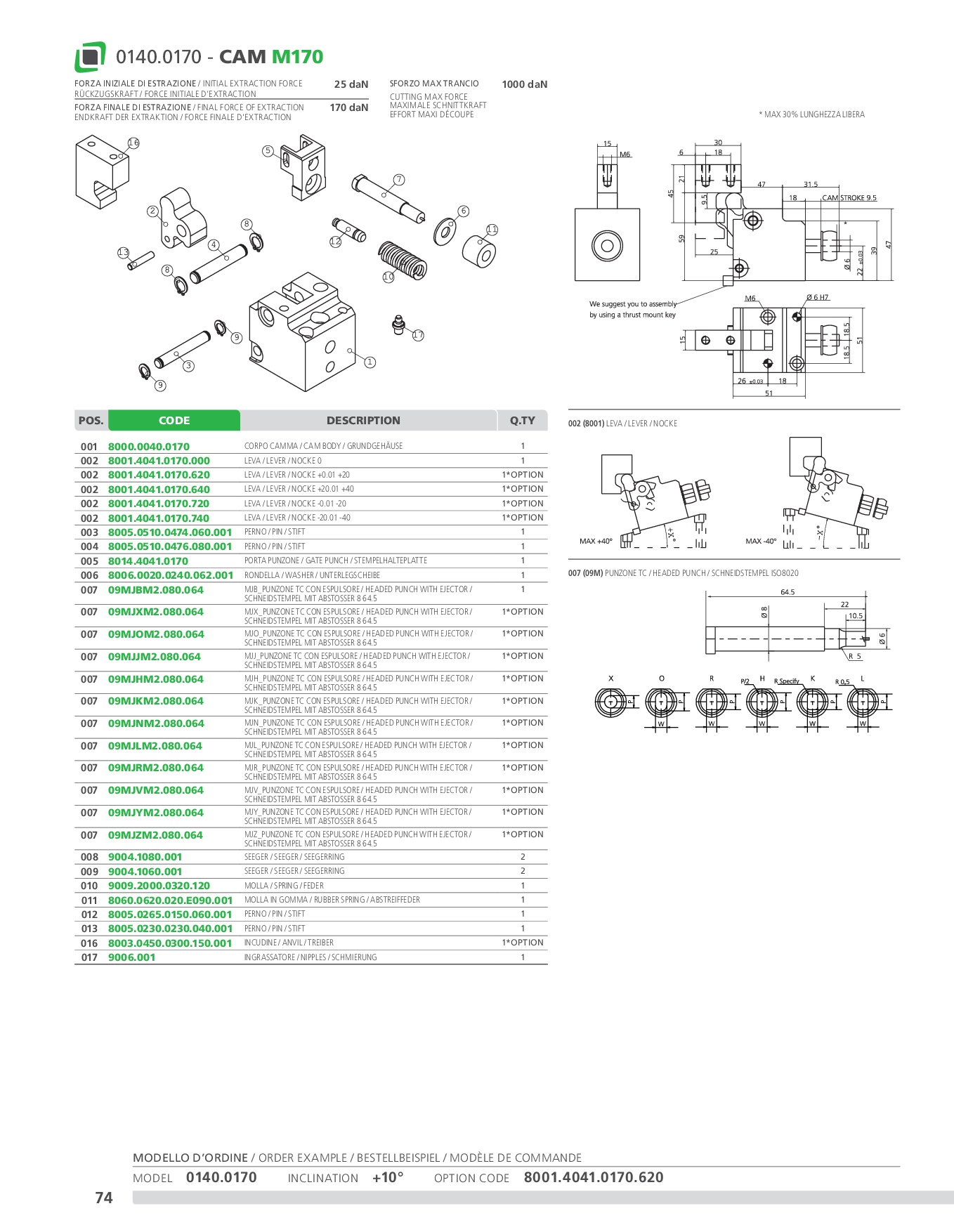

0140.0170 - CAM M170
05/04/2024
Download STEP - 0140.0170 + 8001.4041.0170.620 - M170(+0.01° +20°)
Download STEP - 0140.0170 + 8001.4041.0170.640 - M170(+20.01° +40°)
Download STEP - 0140.0170 + 8001.4041.0170.720 - M170(-0.01° -20°)
Download STEP - 0140.0170 + 8001.4041.0170.740 - M170(-20.01° -40°)
Download STEP - 0140.0170 - M170 (0°)
Download scheda tecnica PDF

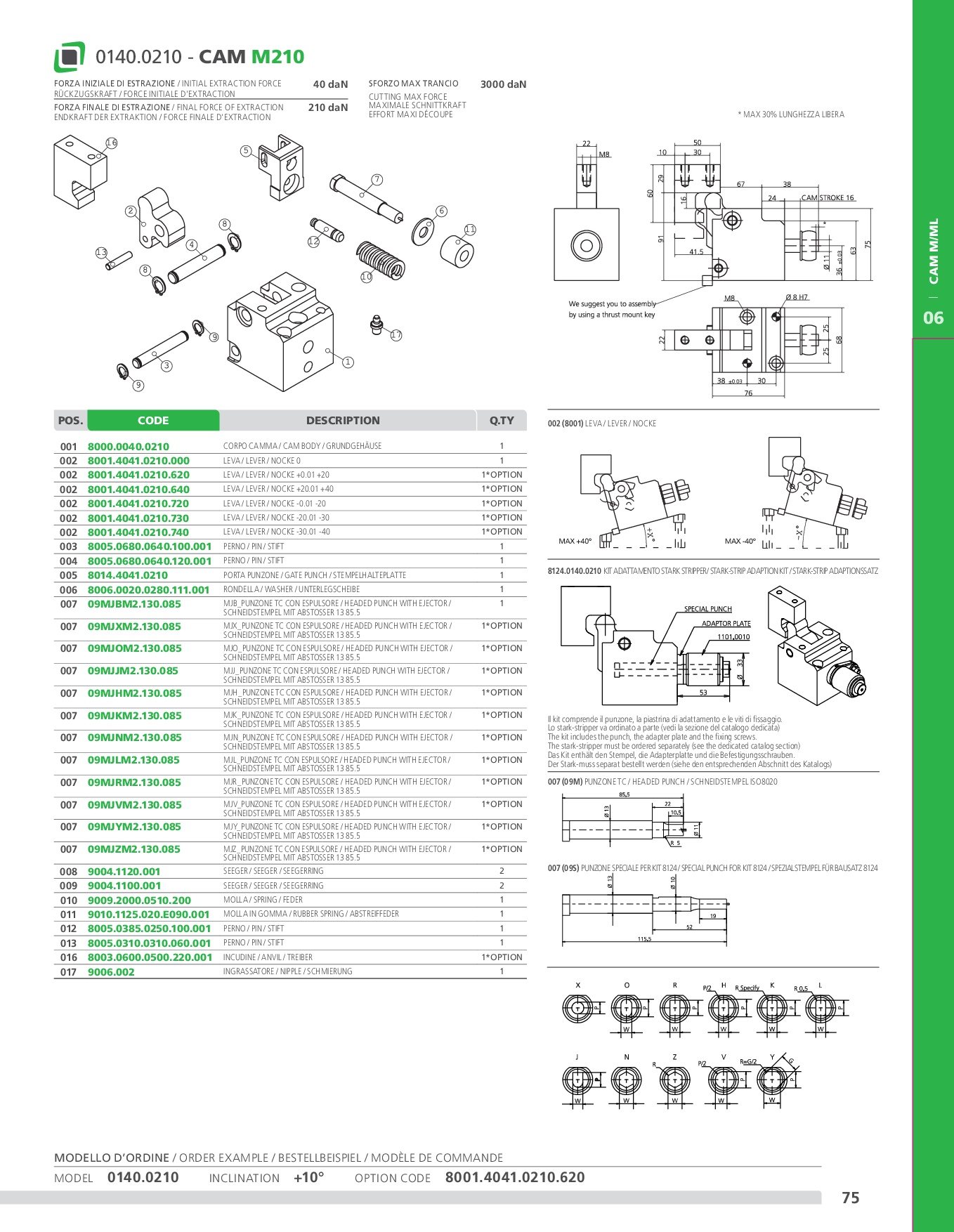

0140.0210 - CAM M210
19/06/2024
Download STEP - 0140.0210 + 8001.4041.0210.620 - M210 (+0.01° +20°)
Download STEP - 0140.0210 + 8001.4041.0210.640 - M210 (+20.01° +40°)
Download STEP - 0140.0210 + 8001.4041.0210.720 - M210 (-0.01° -20°)
Download STEP - 0140.0210 + 8001.4041.0210.730 - M210 (-20.01° -30°)
Download STEP - 0140.0210 + 8001.4041.0210.740 - M210 (-30.01° -40°)
Download STEP - 0140.0210 - M210 (0°)
Download STEP - 8124.0140.0210
Download scheda tecnica PDF

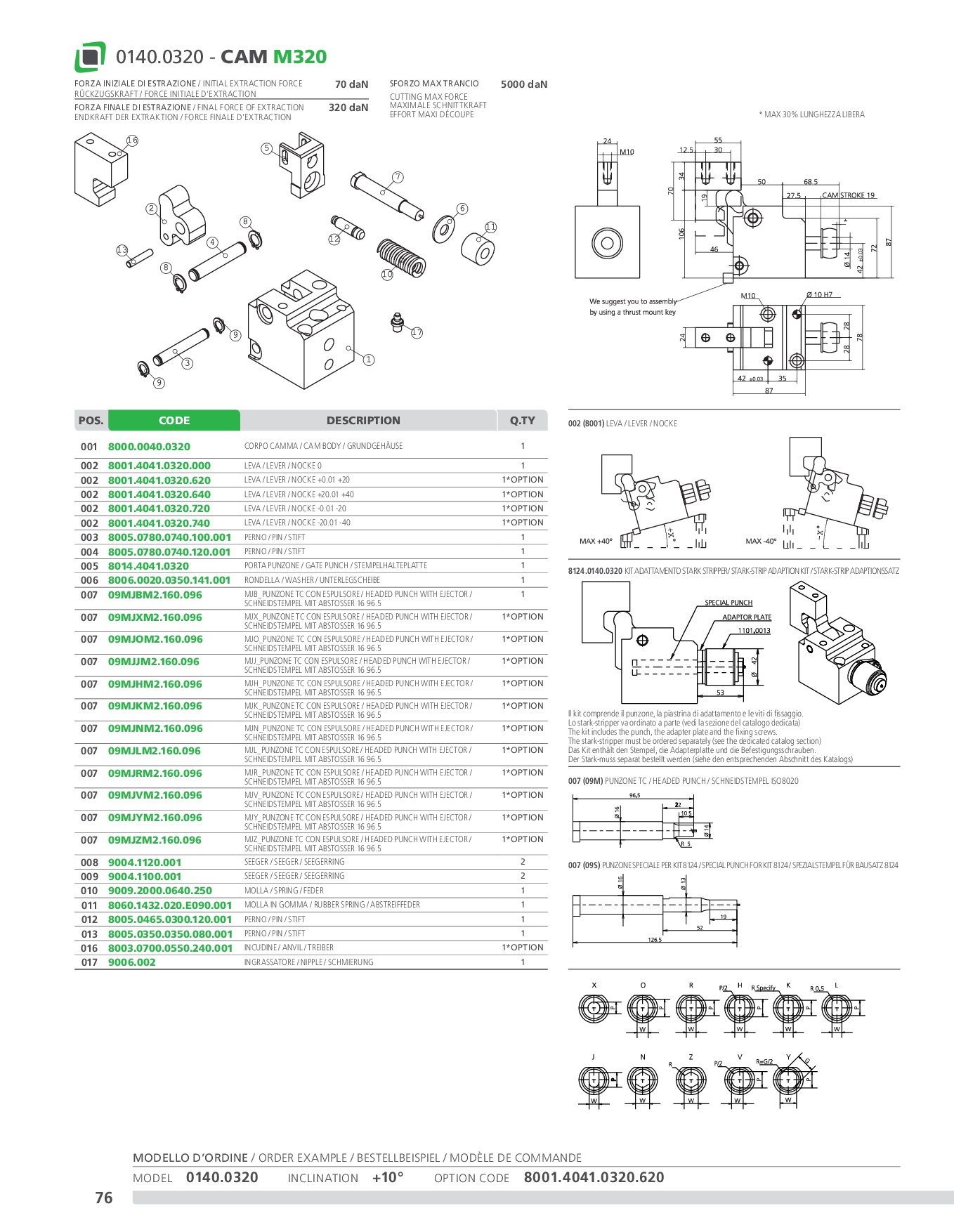

0140.0320 - CAM M320
19/06/2024
Download STEP - 0140.0320 + 8001.4041.0320.620 - M320 (+0.01° +20°)
Download STEP - 0140.0320 + 8001.4041.0320.640 - M320 (+20.01° +40°)
Download STEP - 0140.0320 + 8001.4041.0320.720 - M320 (-0.01° -20°)
Download STEP - 0140.0320 + 8001.4041.0320.740 - M320 (-20.01° -40°)
Download STEP - 0140.0320 - M320 (0°)
Download STEP - 8124.0140.0320
Download scheda tecnica PDF

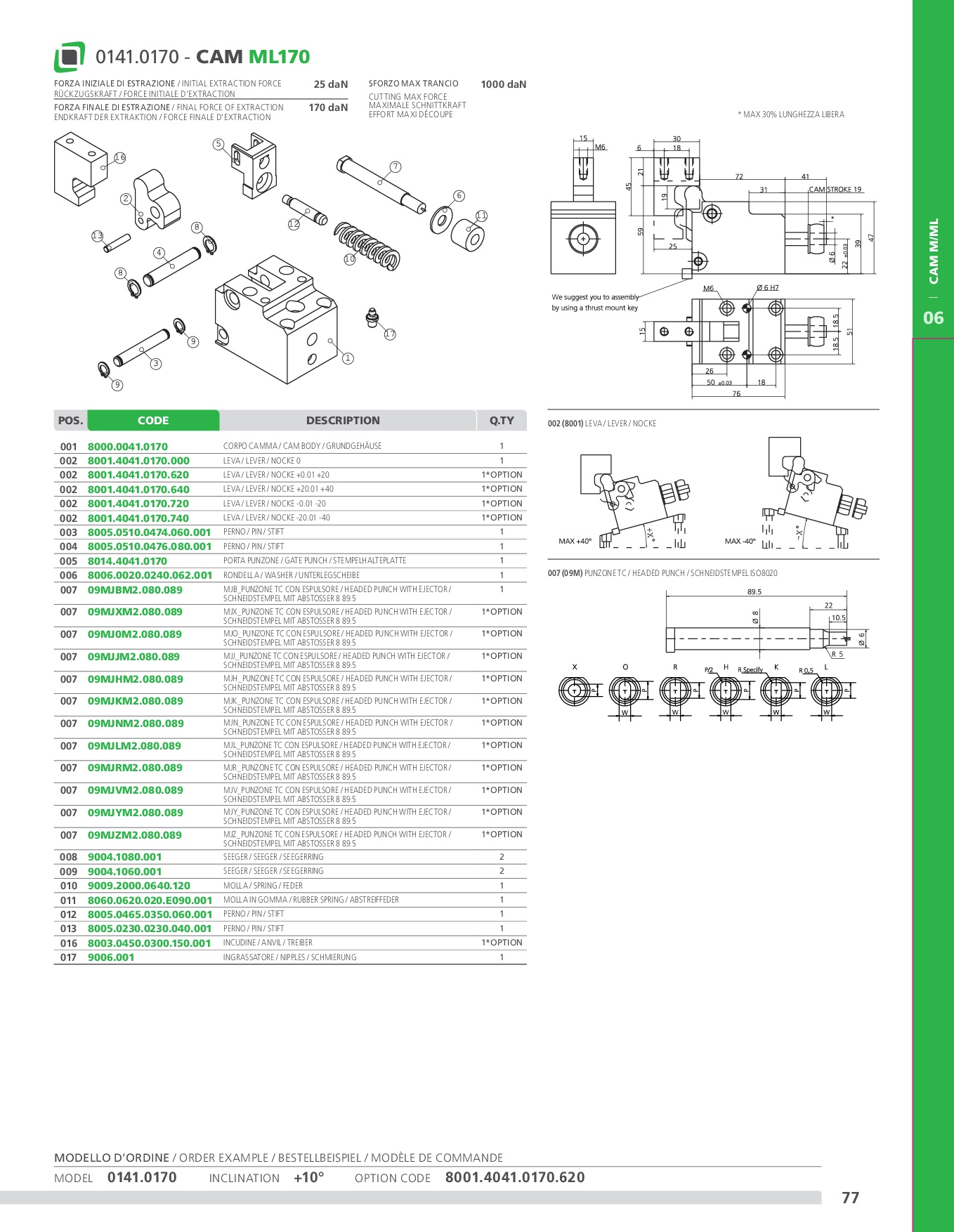

0141.0170 - CAM ML170
05/04/2024
Download STEP - 0141.0170 + 8001.4041.0170.620 - ML170 (+0.01° +20°)
Download STEP - 0141.0170 + 8001.4041.0170.640 - ML170 (+20.01° +40°)
Download STEP - 0141.0170 + 8001.4041.0170.720 - ML170 (-0.01° -20°)
Download STEP - 0141.0170 + 8001.4041.0170.740 - ML170 (-20.01° -40°)
Download STEP - 0141.0170 - ML170 (0°)
Download scheda tecnica PDF

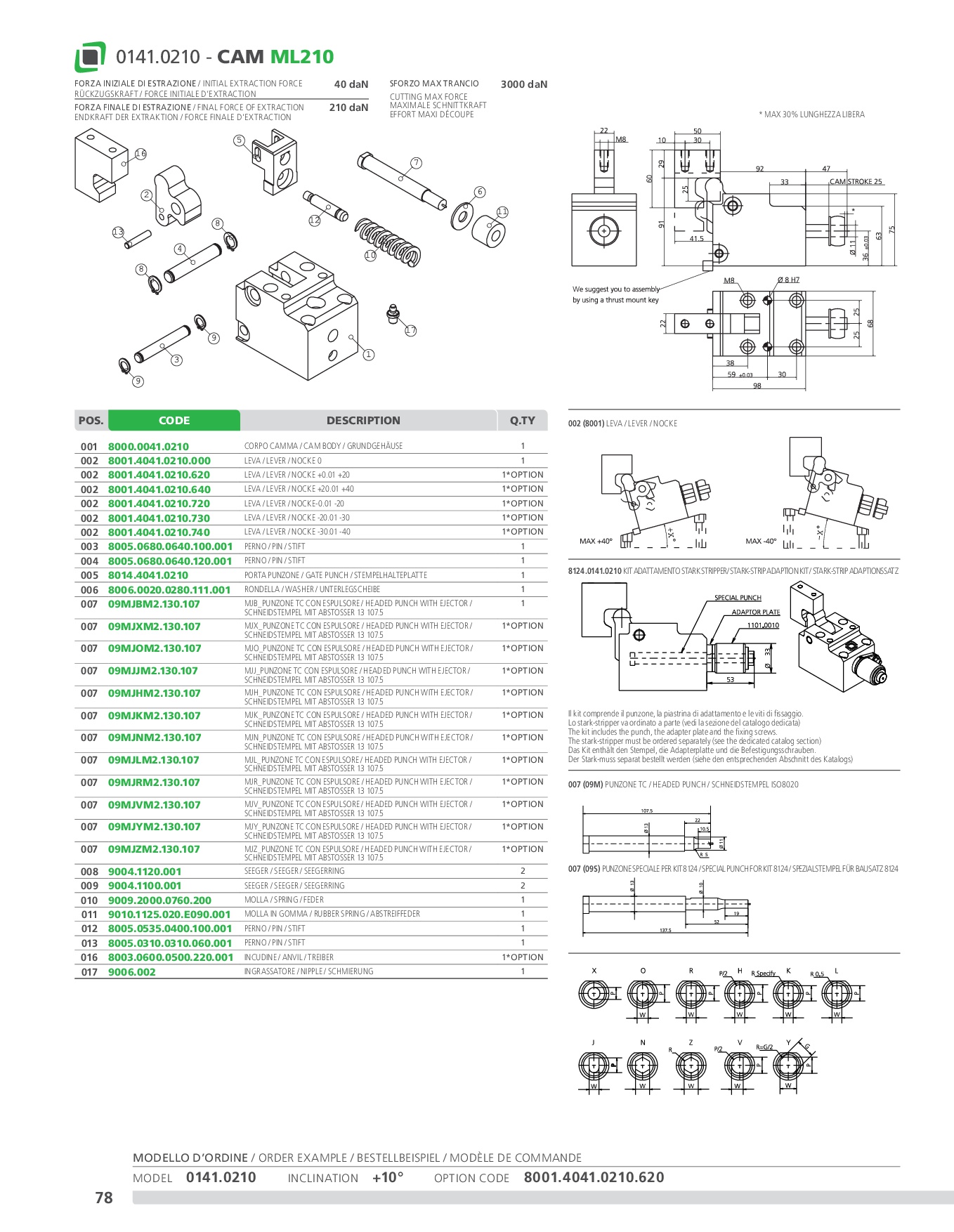

0141.0210 - CAM ML210
19/06/2024
Download STEP - 0141.0210 + 8001.4041.0210.620 - ML210 (+0.01° +20°)
Download STEP - 0141.0210 + 8001.4041.0210.640 - ML210 (+20.01° +40°)
Download STEP - 0141.0210 + 8001.4041.0210.720 - ML210 (-0.01° -20°)
Download STEP - 0141.0210 + 8001.4041.0210.730 - ML210 (-20.01° -30°)
Download STEP - 0141.0210 + 8001.4041.0210.740 - ML210 (-30.01° -40°)
Download STEP - 0141.0210 - ML210 (0°)
Download STEP - 8124.0141.0210
Download scheda tecnica PDF

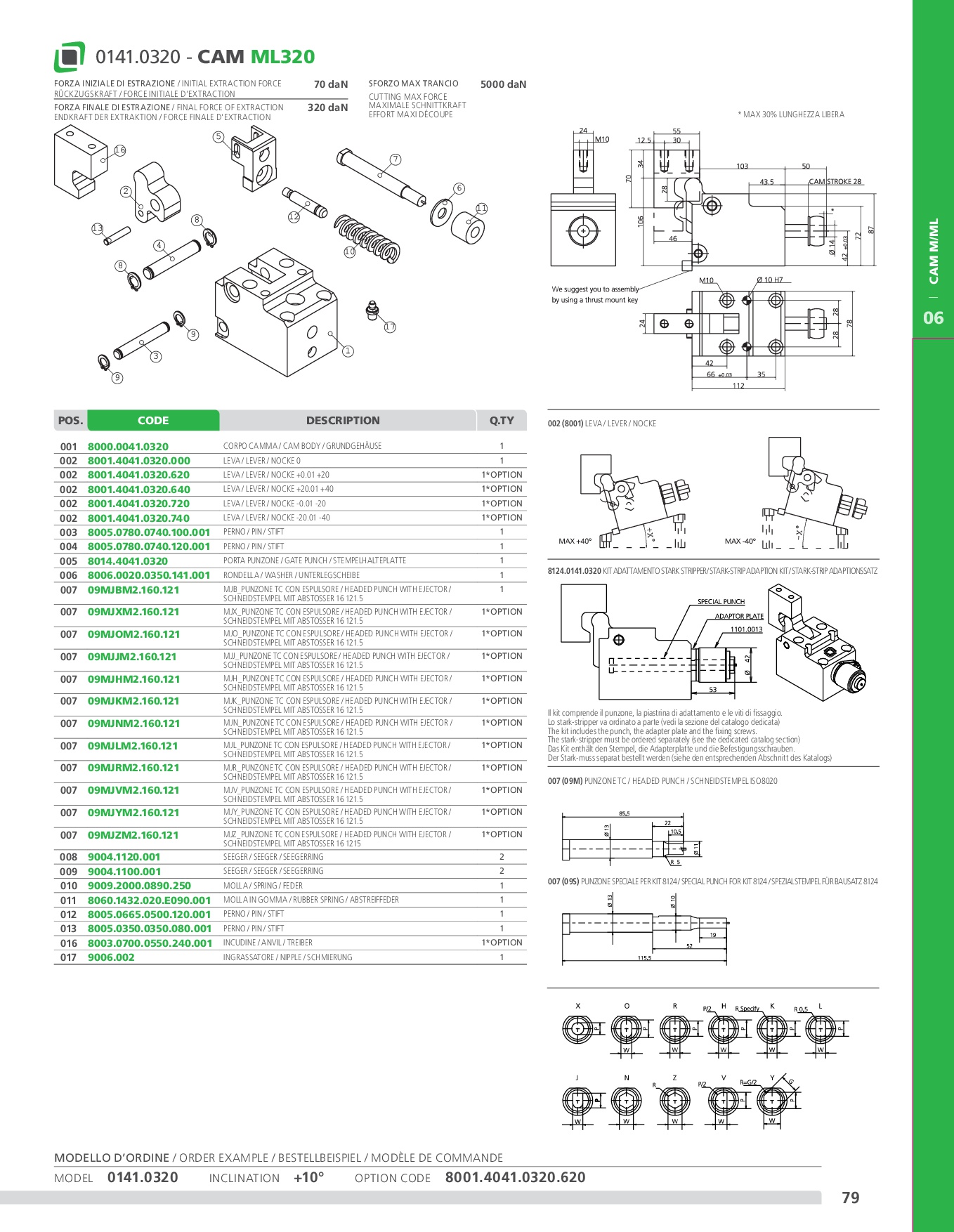

0141.0320 - CAM ML320
19/06/2024
Download STEP - 0141.0320 + 8001.4041.0320.620 - ML320 (+0.01° +20°)
Download STEP - 0141.0320 + 8001.4041.0320.640 - ML320 (+20.01° +40°)
Download STEP - 0141.0320 + 8001.4041.0320.720 - ML320 (-0.01° -20°)
Download STEP - 0141.0320 + 8001.4041.0320.740 - ML320 (-20.01° -40°)
Download STEP - 0141.0320 - ML320 (0°)
Download STEP - 8124.0141.0320
Download scheda tecnica PDF
