M ML
e: 1646
Came mécanique contenant un poinçon réalisé à partir d’un standard ISO 8020 d’une puissance allant jusqu’à 5˙000 daN avec retour par ressort en acier. M a une course normale, ML a une course longue. L’extraction de la tôle est faite par un caoutchouc PU. Elle peut être montée en position horizontale ou inclinée (après discussion avec le bureau technique Newstark). Applications possibles: convient pour les travaux de découpage et de perçage.
Vous êtes en: NOS PRODUITS - Cam units - M ML
Que recherchez-vous ?
Prénom
Dernière édition

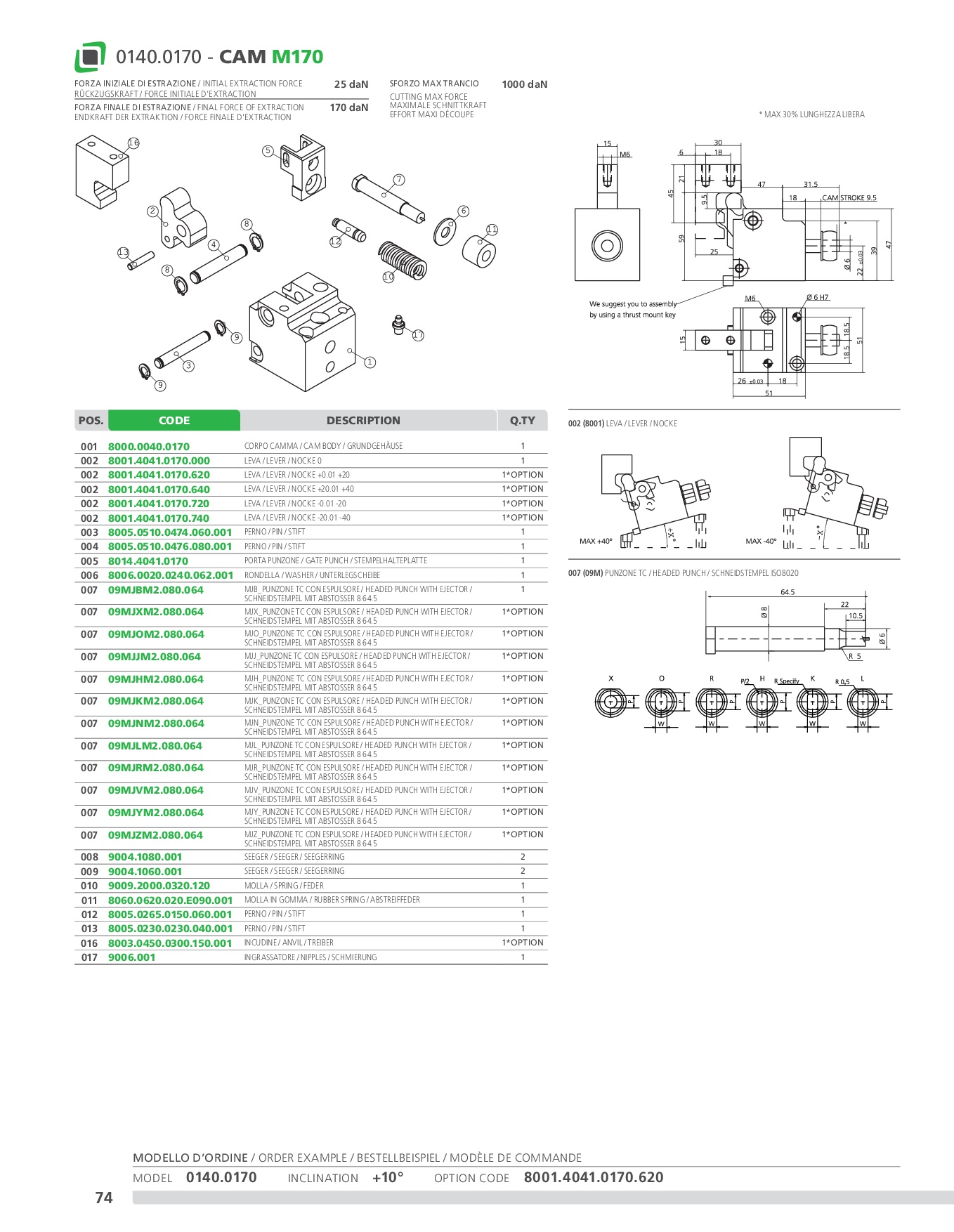

0140.0170 - CAM M170
05/04/2024
Download STEP - 0140.0170 + 8001.4041.0170.620 - M170(+0.01° +20°)
Download STEP - 0140.0170 + 8001.4041.0170.640 - M170(+20.01° +40°)
Download STEP - 0140.0170 + 8001.4041.0170.720 - M170(-0.01° -20°)
Download STEP - 0140.0170 + 8001.4041.0170.740 - M170(-20.01° -40°)
Download STEP - 0140.0170 - M170 (0°)
Download scheda tecnica PDF

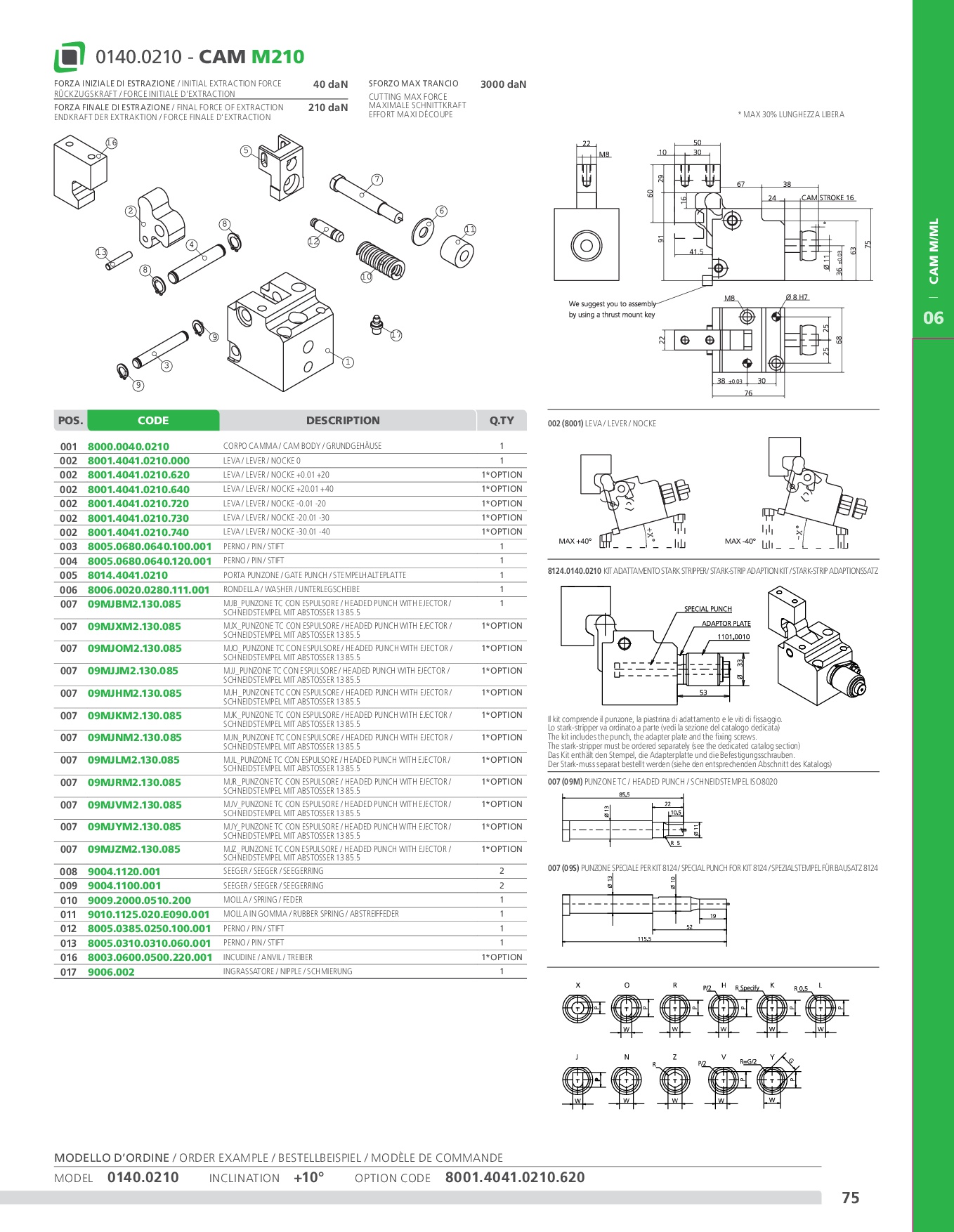

0140.0210 - CAM M210
19/06/2024
Download STEP - 0140.0210 + 8001.4041.0210.620 - M210 (+0.01° +20°)
Download STEP - 0140.0210 + 8001.4041.0210.640 - M210 (+20.01° +40°)
Download STEP - 0140.0210 + 8001.4041.0210.720 - M210 (-0.01° -20°)
Download STEP - 0140.0210 + 8001.4041.0210.730 - M210 (-20.01° -30°)
Download STEP - 0140.0210 + 8001.4041.0210.740 - M210 (-30.01° -40°)
Download STEP - 0140.0210 - M210 (0°)
Download STEP - 8124.0140.0210
Download scheda tecnica PDF

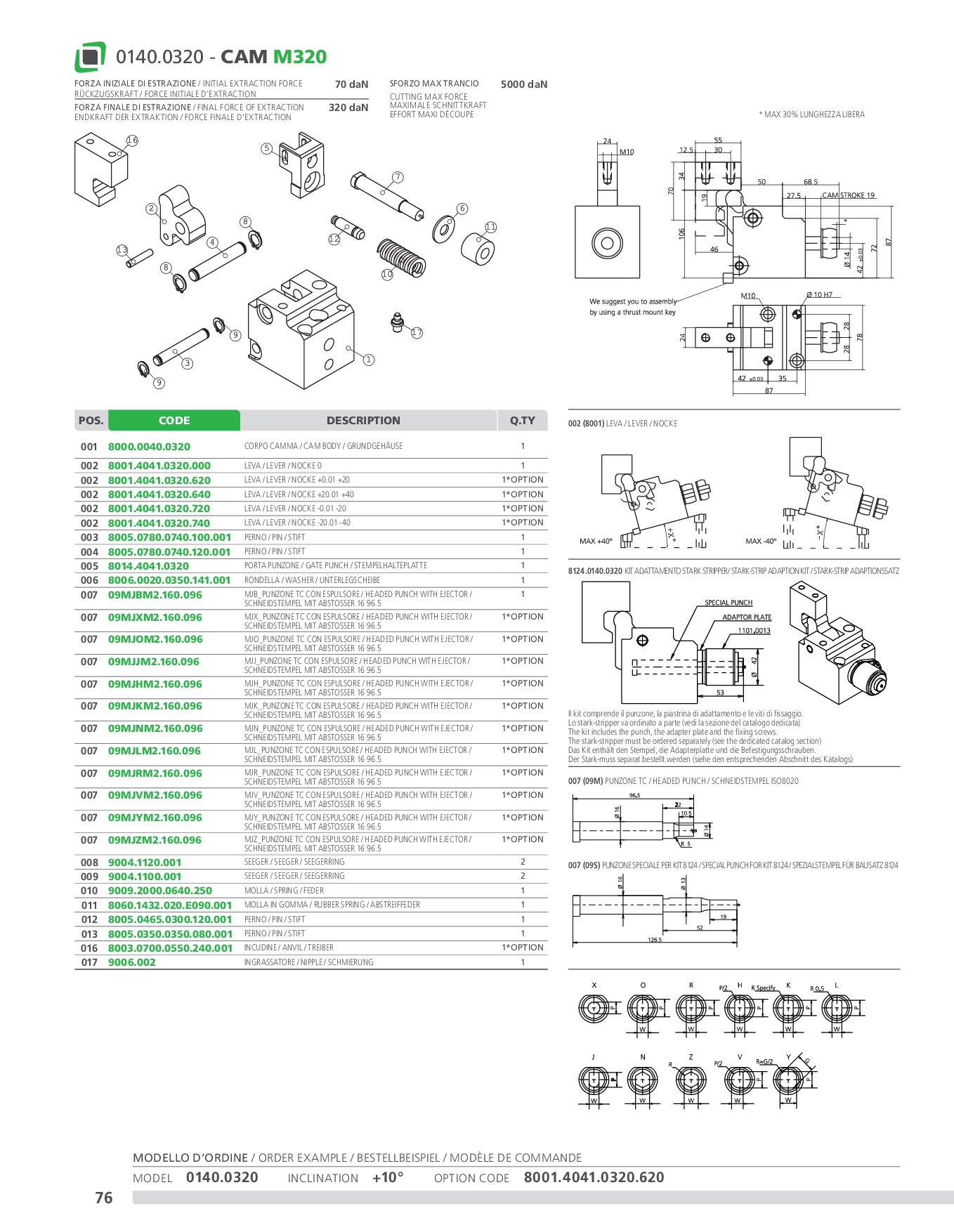

0140.0320 - CAM M320
19/06/2024
Download STEP - 0140.0320 + 8001.4041.0320.620 - M320 (+0.01° +20°)
Download STEP - 0140.0320 + 8001.4041.0320.640 - M320 (+20.01° +40°)
Download STEP - 0140.0320 + 8001.4041.0320.720 - M320 (-0.01° -20°)
Download STEP - 0140.0320 + 8001.4041.0320.740 - M320 (-20.01° -40°)
Download STEP - 0140.0320 - M320 (0°)
Download STEP - 8124.0140.0320
Download scheda tecnica PDF

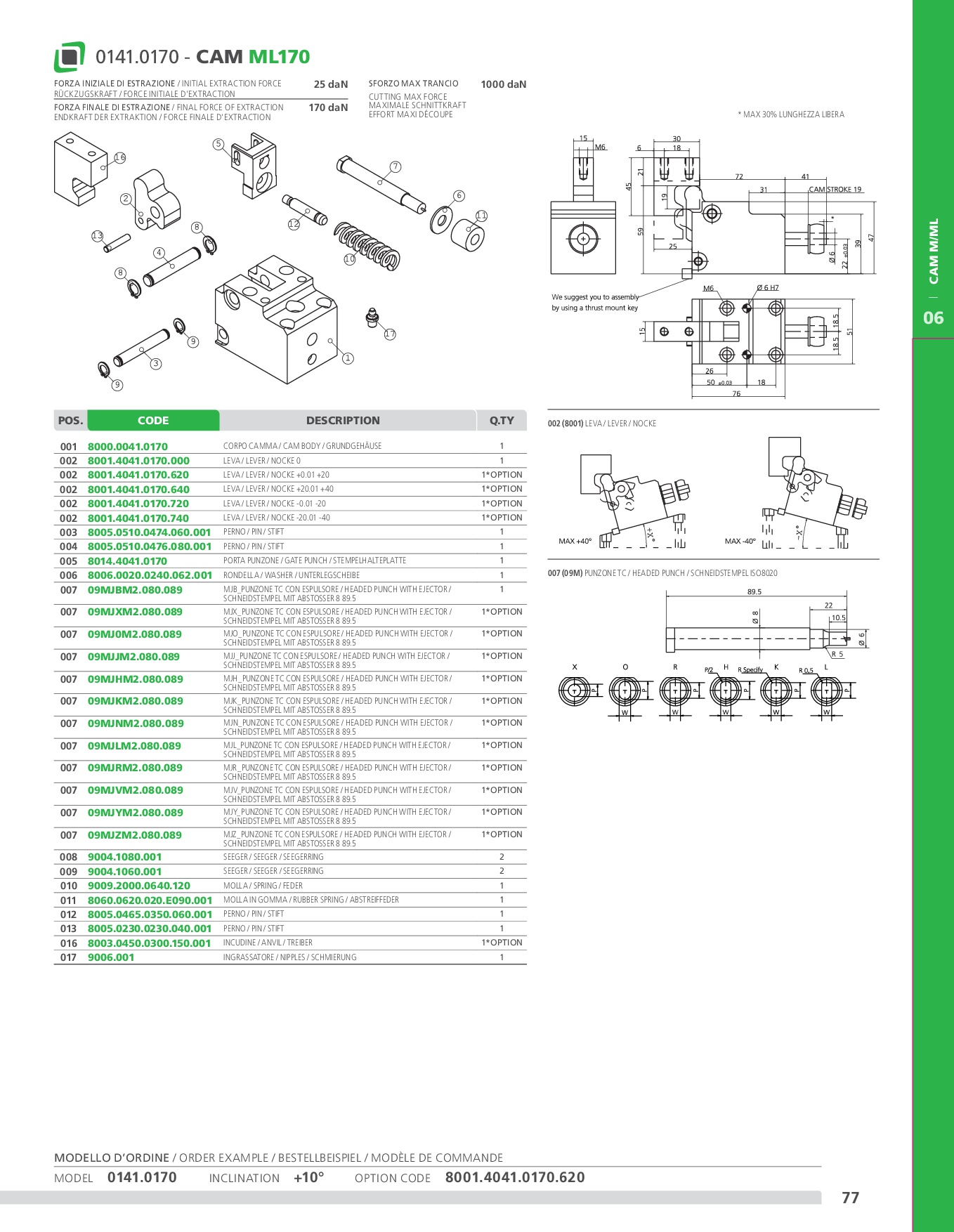

0141.0170 - CAM ML170
05/04/2024
Download STEP - 0141.0170 + 8001.4041.0170.620 - ML170 (+0.01° +20°)
Download STEP - 0141.0170 + 8001.4041.0170.640 - ML170 (+20.01° +40°)
Download STEP - 0141.0170 + 8001.4041.0170.720 - ML170 (-0.01° -20°)
Download STEP - 0141.0170 + 8001.4041.0170.740 - ML170 (-20.01° -40°)
Download STEP - 0141.0170 - ML170 (0°)
Download scheda tecnica PDF

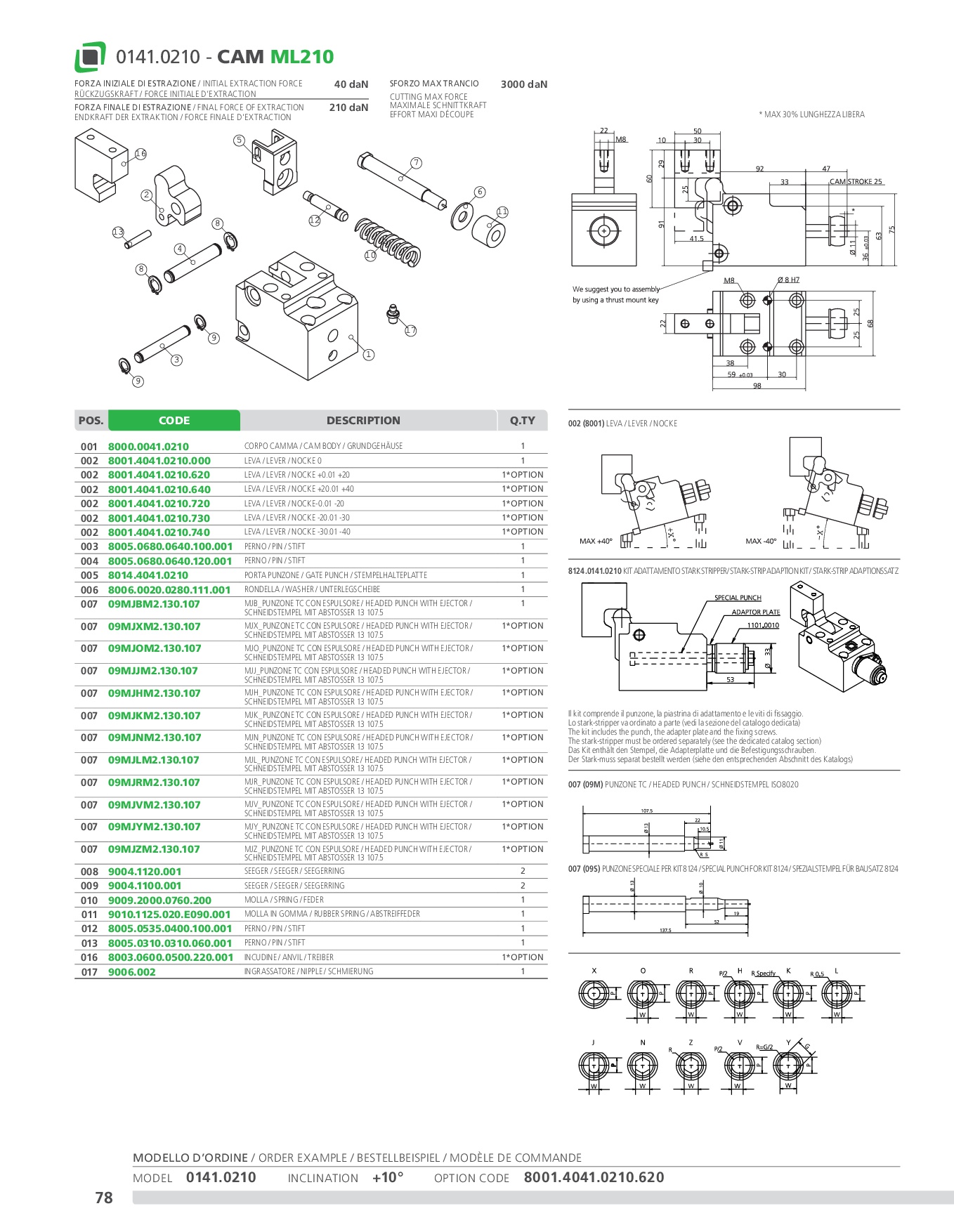

0141.0210 - CAM ML210
19/06/2024
Download STEP - 0141.0210 + 8001.4041.0210.620 - ML210 (+0.01° +20°)
Download STEP - 0141.0210 + 8001.4041.0210.640 - ML210 (+20.01° +40°)
Download STEP - 0141.0210 + 8001.4041.0210.720 - ML210 (-0.01° -20°)
Download STEP - 0141.0210 + 8001.4041.0210.730 - ML210 (-20.01° -30°)
Download STEP - 0141.0210 + 8001.4041.0210.740 - ML210 (-30.01° -40°)
Download STEP - 0141.0210 - ML210 (0°)
Download STEP - 8124.0141.0210
Download scheda tecnica PDF

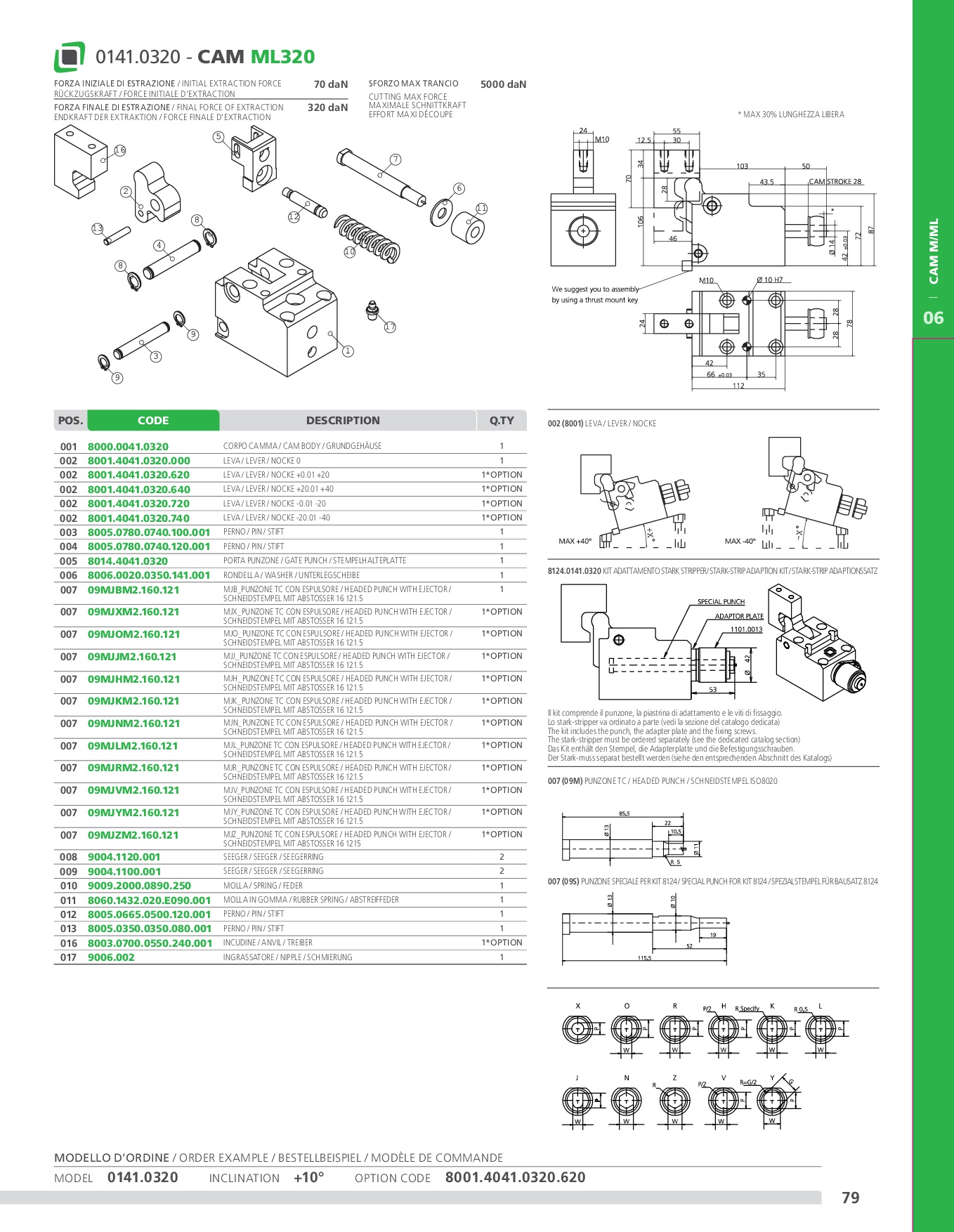

0141.0320 - CAM ML320
